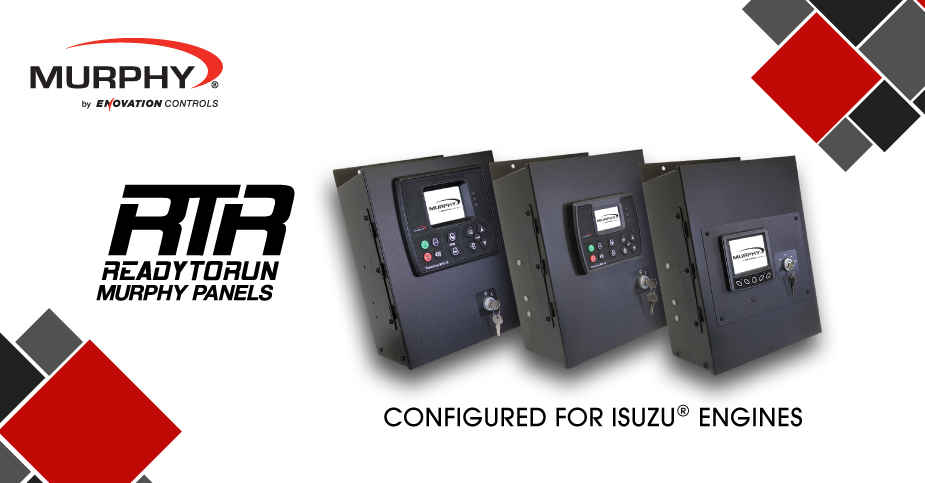

Enovation Controls is giving you more control and options than ever before with Murphy-brand Ready to Run panels configured for ISUZU engines. Murphy’s RTR panels configured for ISUZU engines are a complete engine control package including a control box with mounted industrial controller, a protected panel-enclosed mount for your ISUZU ECU and a specially fitted engine harness designed for Final Tier 4 ISUZU 4LE2 and 4JJ1T engines. Ready to Run panels are ready right out of the box for quick installation and allow for several mounting configurations.
In the engine business, downtime is a dirty word. Murphy’s plug-and-play RTR panels will get you up and running quickly with a complete package that saves you valuable time on the shop floor. Time is money, and with RTR, you won’t waste time searching for parts to make a compromised solution at a higher cost than plug-and-play RTR panels.
Available panel options include:
- The ML2000, which features the PowerCore® MPC-20 controller with 3.8-inch monochrome LCD and an 11-button tactile silicone keypad. The ML2000 is the ultimate auto start solution featuring 15 inputs and 13 outputs. Additional shutdown options can be configured using the included I/O, and an optional I/O harness is available.
- The ML1000, which also features the PowerCore® MPC-10 controller with 2.7-inch monochrome LCD and an 11-button tactile silicone keypad. This economical auto start solution includes 9 inputs and 8 outputs. Like the ML2000, the ML1000 also has additional shutdown options which can be configured using the included I/O, and an optional I/O harness is available.
- And the MLC380, which features the PowerView® 380 display with 3.8-inch monochrome LCD and a 5-button tactile silicone keypad. This fully configurable panel includes 8 inputs and 2 outputs. A remote monitoring version of the MLC380 is also available.
All three RTR panels configured for ISUZU engines are Final Tier 4-ready and user-configurable directly from the keypad. Adjustable RPM set points and built-in shutdowns for common engine warnings make your setup quick and easy. All RTR panels are designed to withstand harsh environments and your ISUZU ECU is secured inside the panel to protect it from the elements and simplify your installation. Included harnessing also makes connecting an RTR panel to your ISUZU engine a breeze.
Murphy RTR panels configured for ISUZU engines also offer a door option, as well as accessories such as harnesses and an I/O connector kit to make monitoring and controlling your ISUZU engine easy.
Don’t have an ISUZU engine? Murphy RTR panels configured for ISUZU engines are just a part of Enovation Controls’ total panel offering. MurphyLink® series panels utilize the latest PowerCore controller and PowerView display technologies. These panels come in a variety of models with various levels of features and functionality for powerful control on the simplest mechanical engines or the most advanced, fully electronic Tier 4 engines. Pair a MurphyLink panel with Murphy Industrial Harnesses to simplify your engine connection with harnessing built to the specifications of each engine manufacturer and customer. Additional standard Ready to Run panels are also available for MTU® and Doosan® engines.
Save time, money and effort—it all adds up to Ready to Run as the perfect solution. To learn more about adding Murphy RTR panels to your engines, please contact your Murphy by Enovation Controls sales representative.
Contact our Sales Team about Ready to Run Panels for ISUZU Engines
