Hello Sir,
Please provide the configuration step for 'Analog Output' of MPC20 for "Current Speed Feedback".

Like, if Speed is varying 0-3000 RPM, then Analog O/P will be varying 0-5V.

Please support asap.


-regards
Rahul J. Gupta | Project Engineer
Rajkot Marine LLC, Ajman-UAE

Note: If you configure the Analog Output to be a Speed Feedback then switching the menu to configure the Throttle as an Analog will override the Speed Feedback. As this:
Example of using the Analog Output as a Speed Feedback.
Here's the Speed Feedback IO Definition.
Configure the Analog Output with the Speed Feedback IO Definition.

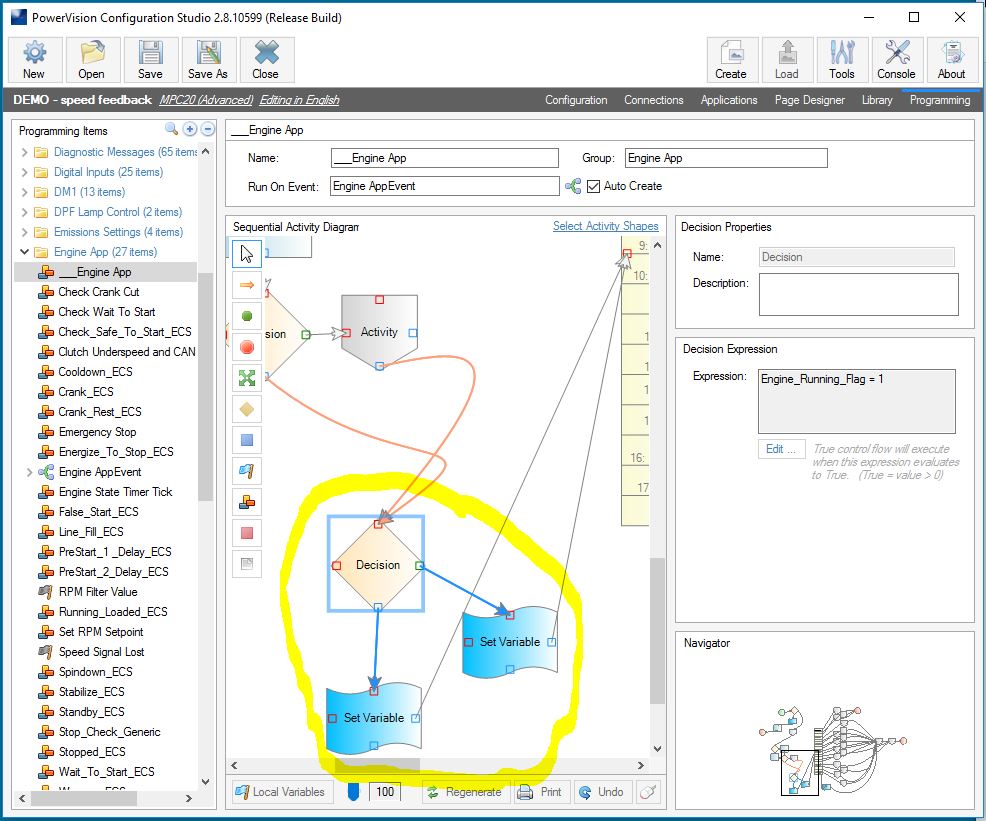

Insert into the __Engine App activity program to update the Speed Feedback variable. Decision to check if the Engine Running Flag is set.
If the engine is running then update the Speed Feedback variable using the defined expression.
Engine not running, the Speed Feedback variable is set to 0.
The DEMO - speed feedback configuration.

Hello Boyce,
Thanks for the reply...

I am looking to this, the application were i am using MPC20 is for Mechanical Engine, so throttle type needs to be in "Pulse Inc/Dec".
Then according have to configure the Analog Output for Speed Feedback, as this signal is required to Client in their other system for Monitoring.
