The PowerView 450 features a rich features set and full customization in a compact size.

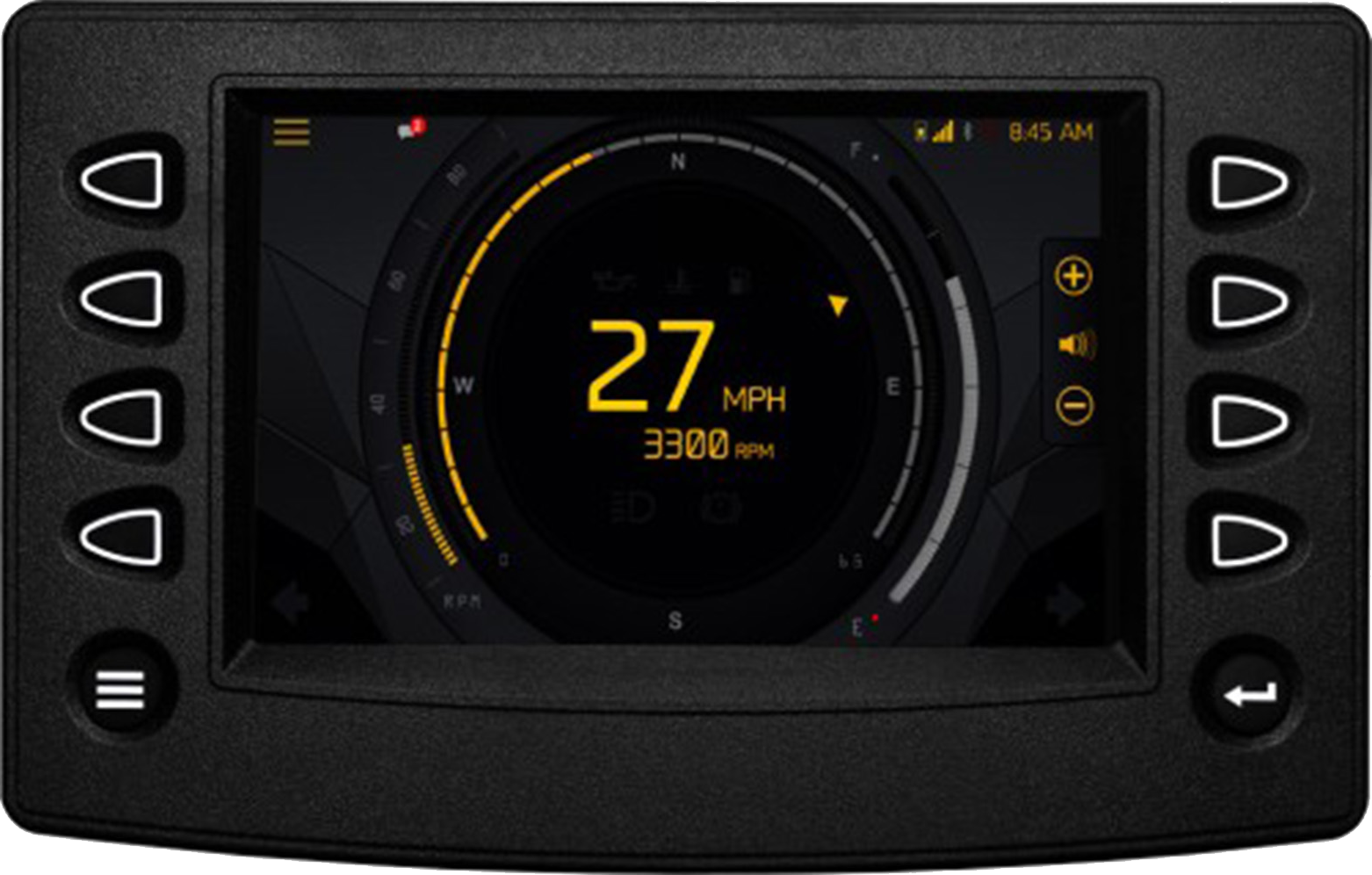

The PV450 features a 4.3-inch screen perfect for applications with tighter spaces, and it delivers the same powerful performance as Murphy’s larger configurable displays. It integrates electronic engine, transmission and equipment information into an easy-to-read, full-color interface with eight tactile push buttons. The PV450’s sunlight viewable, full-color screen makes seeing life-like gauges, alarm warnings, service codes, and video easy to view in virtually any condition. The HelmView 450 (see “How to Order” below) is also available to meet the engine monitoring needs of the Commercial Marine industry. The PV450 and HV450 are programmable with PowerVision Configuration Studio®.
Graphic interface not included, custom configuration required
Technical
Environmental
Specifications applicable to CSA-certified PV450 only
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.Additional product documentation can be found on our product support website or by clicking the Help Center button above.
| Part Number | Description | Notes |
|---|---|---|
| 78700436 | PV450 | Display |
| 78700538 | PV450, J1939, NMEA, with Video | Display |
| 78700515 | PV450, with Video | Display |
| 78700543 | PV450-01-CSA, with Video (cCSAus) | Display |
| 78700544 | PV450NV-01-CSA, (cCSAus) | Display |
| 78700563 | HV450, J1939, with video | Commercial marine configuration and non-isolated CAN ports |
| 78700538 | HV450, J1939, NMEA, with video | Commercial marine configuration with one NMEA 2000 isolated CAN port |
| 78000831 | PV450, Visor Kit | Accessories |
